The  electric rail transfer vehicle is a heavy-duty transport vehicle designed specifically for material movement within workshops. Powered by electricity, it runs on pre-laid steel rails and features strong load-carrying capacity, stable operation, and high safety. This vehicle is suitable for handling and transferring large workpieces, molds, steel, or equipment components in production workshops, warehouses, mold shops, metallurgical plants, and machinery manufacturing plants.

Power Methods

Common power supply options for the 25-ton Electric Rail Transfer Vehicle include:

Battery Power (KPX Series): An independent power source, requiring no external cables, offering high flexibility and suitable for medium- and long-distance transport.

Low-Voltage Rail Power (KPD Series): Power is continuously drawn from the rails during operation, providing stable and reliable operation suitable for long-term, high-frequency use.

Cable Reel/Tow Cable Power (KPC Series): Power is supplied via a cable, making it economical and practical for shorter travel distances.

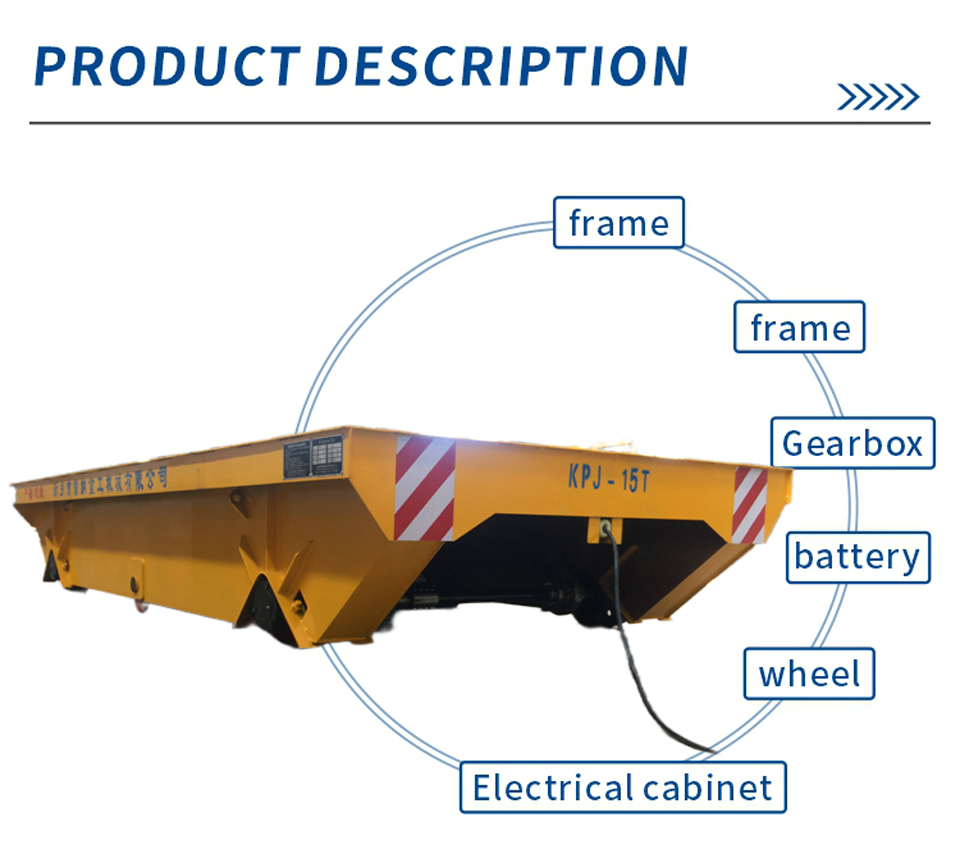

Structural Features

High-Strength Vehicle Body: The vehicle frame is constructed of a box-shaped structure welded from wear-resistant steel plates, ensuring it remains stable under a 10-ton load.

Smooth Drive: Equipped with a reducer + motor combination, it offers soft start and smooth, impact-free operation.

Safety Protection: Equipped with audible and visual alarms, an emergency stop button, and limit switches. Optional infrared anti-collision and automatic stop functions are also available.

Operation: Standard joystick control, with optional wireless remote control for single-person operation.

Expandable Functions: Hydraulic lifts, automatic roller lines, V-shaped brackets, and other devices can be added to meet material transport needs, enabling multi-functional transport capabilities.

Technical Parameters (reference values, customizable)

Rated Load Capacity: 10 tons

Motor Power: 1-5 kW (depending on operating conditions)

Operating Speed: 0-20 m/min (adjustable)

Track Gauge: 1435 mm (or customizable upon request)

Turning Radius: Designed to suit the factory track layout

Control: Joystick + wireless remote control

Safety Devices: Emergency stop, audible and visual alarms, limit switches, and overcurrent/overload protection

Application Scenarios

Machinery Manufacturing Workshops: Transport of large machine tool components and semi-finished products.

Mold Shop: Transfer and assembly of molds weighing up to 25 tons.

Metallurgy and Steel Industry: Internal circulation of heavy goods such as steel coils and billets.

Warehousing and Logistics: Handling heavy goods between workshops and warehouses.

Assembly Line Transportation: Utilizes production lines to enhance production automation.

Product Advantages

✅ High Load Capacity – Professionally designed to easily carry loads up to 25 tons.

✅ Smooth Operation – Soft start and gentle braking ensure cargo safety.

✅ Safe and Reliable – Multiple safety systems reduce the risk of accidents.

✅ Easy Operation – User-friendly design allows single-person operation.

✅ Customizable – Dimensions, gauges, power supply methods, and additional features can all be customized to meet customer needs.
