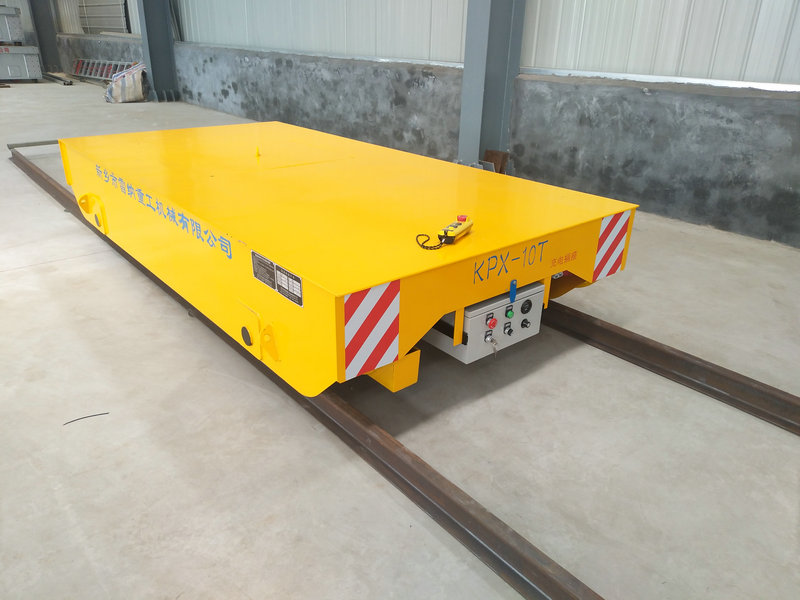

The 10-ton heavy-duty electric rail transfer vehicle is a highly efficient, heavy-load transport system designed specifically for factories, workshops, and warehouse logistics.

Powered by batteries, it operates smoothly on pre-installed rails in the workshop. It boasts high load capacity, stable operation, safety, environmental friendliness, and easy maintenance.Whether it's steel, castings, molds, or entire pallets, this vehicle enables efficient transfer between workstations and between production lines and warehouses, significantly enhancing the automation and intelligence of workshop logistics.

Product Features

Powerful Load Capacity

With a rated load of 10 tons, it meets the needs of transporting medium-to-large workpieces and heavy raw materials.

The high-strength steel frame offers excellent impact and deformation resistance.

Battery-powered, environmentally friendly

Powered by a large-capacity battery, it achieves zero emissions and low noise operation.

No high-voltage cables are required, making workshop layouts more flexible and safe.

Smooth operation and easy operation

Equipped with a stepless speed control system, it offers adjustable speed and smooth operation.

Available with either handle or wireless remote control, single-person operation is possible.

Complete Safety Features

Equipped with an audible and visual alarm system, an emergency brake system, and position limit protection devices.

Soft start and stop functions protect the load and equipment.

Low Maintenance Cost

Modular electrical design ensures simple and convenient maintenance.

Key components are durable and wear-resistant, extending service life and reducing operating costs.

Core Advantages

High Efficiency: Reduces manual handling time and increases logistics flow.

High Safety: Replaces traditional transportation tools such as forklifts, reducing the risk of on-site safety accidents.

Customizable: Flexible design of dimensions, functions, and control systems based on process flow and workshop layout.

Automation Upgrade Potential: Can be integrated with automated warehouses and production lines for semi-automatic or fully automated operation.

IV. Technical Specifications (Text Version)

This equipment has a rated load capacity of 10 tons and is compatible with standard track sizes P24 to P43. Customizable track gauges are supported. The vehicle is driven by a DC motor and powered by a battery. Sufficient battery capacity ensures continuous operation for 6 to 8 hours.

The operating speed is adjustable, reaching up to 20 meters per minute, and a stepless speed regulation system ensures smooth starting and stopping.

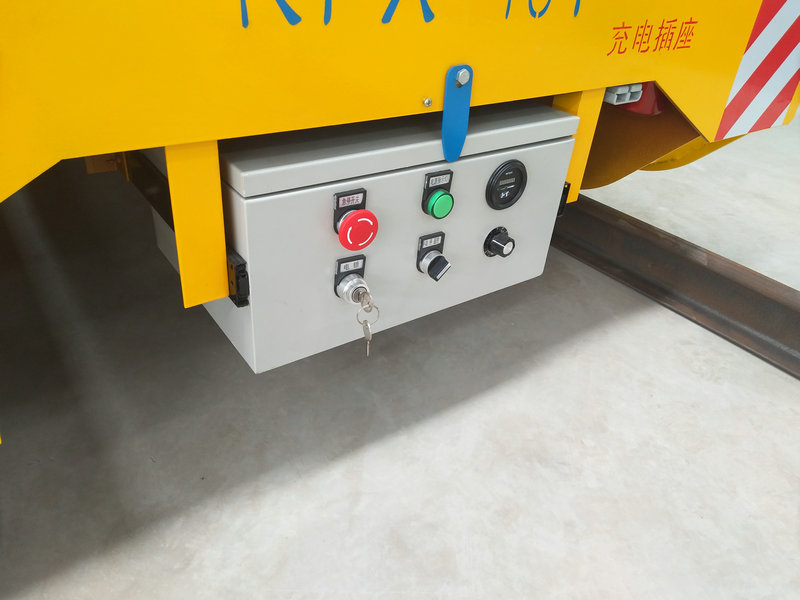

Control options include a handlebar control or wireless remote control to meet diverse on-site operational requirements.

The vehicle features a compact design and a flat platform that can be customized with additional features such as V-braces, roller conveyors, or guardrails.

Applications

Metalworking plants: Transfer heavy materials such as steel plates, profiles, and castings.

Machinery manufacturing plants: Move large mechanical parts between workstations.

Mold industry: Loading, unloading, and warehousing and transport of molds weighing less than 10 tons.

Warehouse and logistics centers: Bulk transport of pallets, boxes, and full pallets.

Metallurgical industry: Handling high-temperature or heavy raw materials such as furnace charge and steel ingots.

Customization

To meet the diverse production needs of our customers, we offer the following customization services:

External Dimensions: The vehicle's dimensions and structure can be customized based on the site and load size.

Functional Extensions: Optional hydraulic lift, automatic docking device, V-shaped bracket, or automatic roller conveyor platform are available.

Control System: Upgradable to PLC control and automatic navigation, enabling unmanned operation.

Safety Features: Supports multiple safety features such as LiDAR, infrared collision avoidance, and limit alarms.

Battery Type: Available in lead-acid or lithium batteries to meet different endurance and cost requirements.
