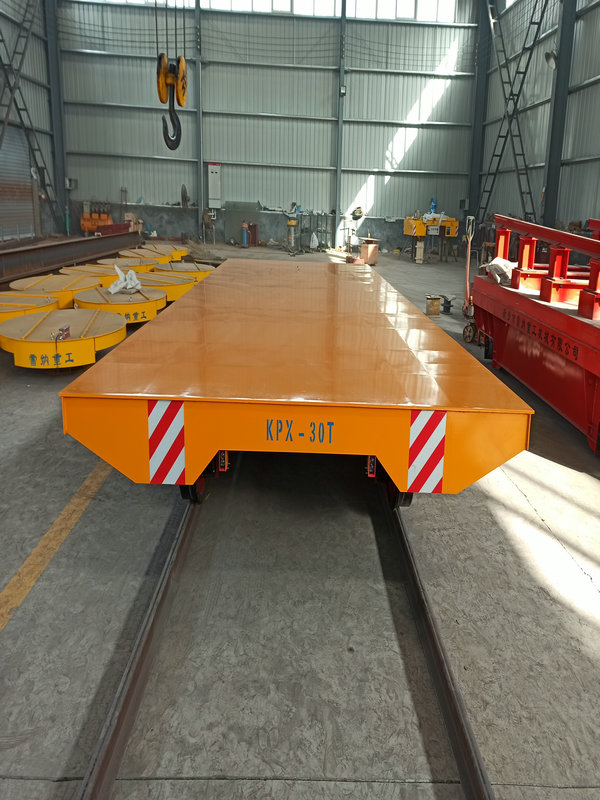

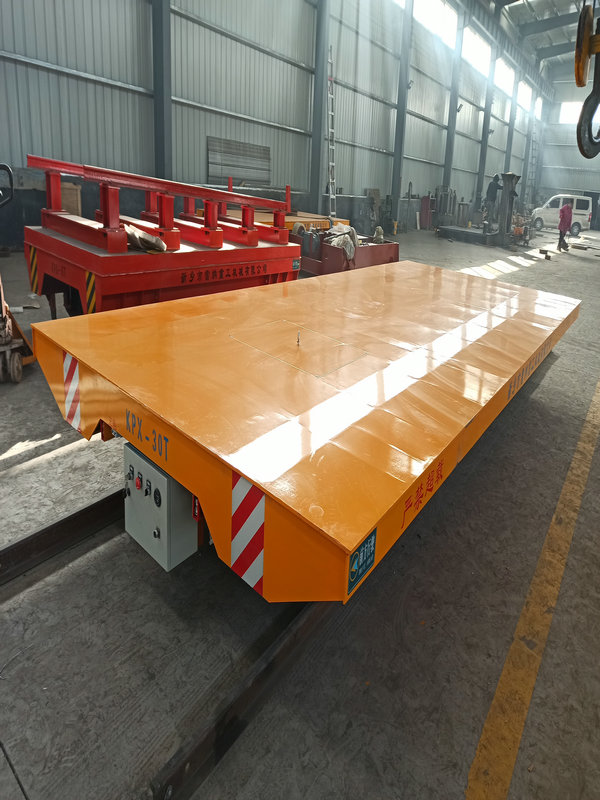

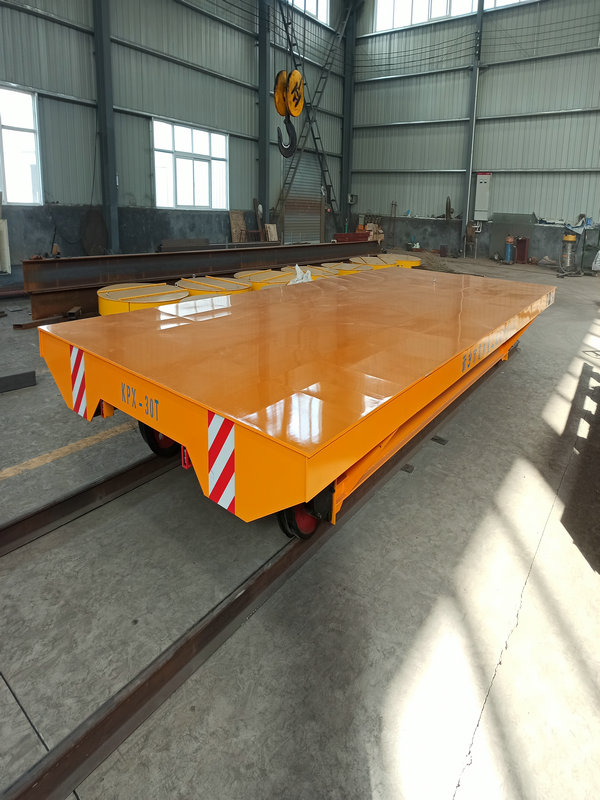

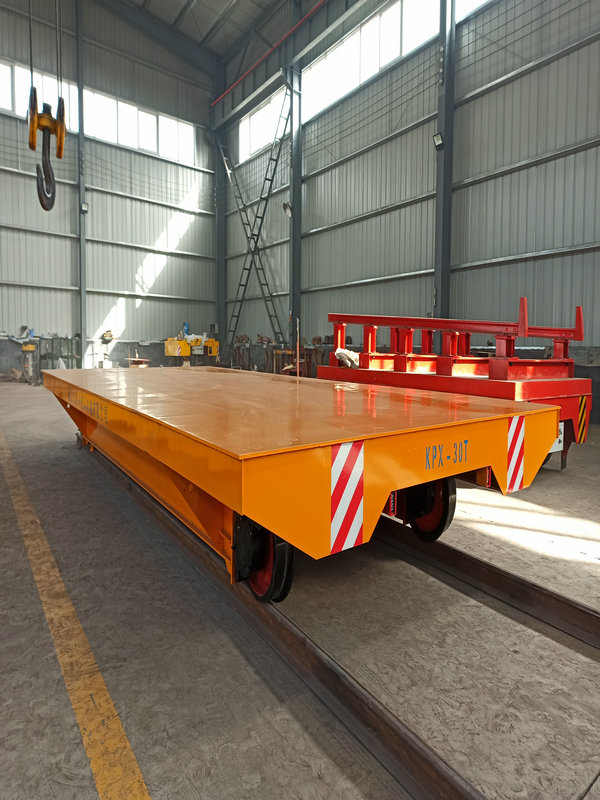

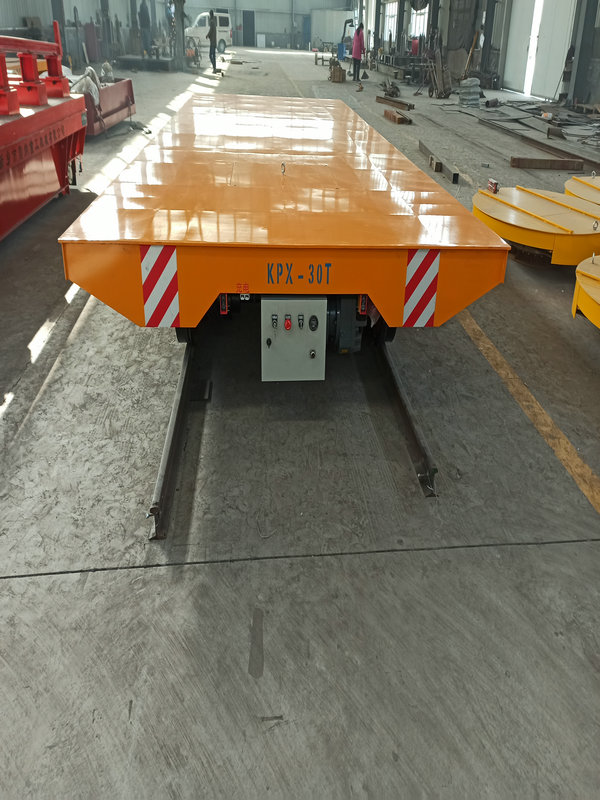

30-Ton Electric Rail Transfer Vehicle (KPX Series)

Product Overview

The 30-ton electric rail transfer cart is a large-scale material handling device powered by electricity and operating on fixed rails. It uses steel rails as its running path, boasts a sturdy structure, and a strong load capacity. It can easily transport large cargo weighing up to 30 tons, such as molds, equipment, steel, and mechanical parts. It is widely used in industries such as metallurgy, machinery manufacturing, automotive, shipbuilding, mold processing, and warehousing and logistics.

Power Methods

There are three common power supply options:

Battery Power (KPX Series): The vehicle incorporates a high-performance battery, offering flexible operation without the need for an external power cable, making it suitable for medium- and long-distance transport.

Low-Voltage Rail Power (KPD Series): The rails serve as the power source, drawing power while the vehicle is in motion. This makes it suitable for high-frequency, large-tonnage, and long-duration operations.

Cable Reel/Trailer Power (KPC Series): Power is drawn from a cable reel or trailing cable, providing stable power supply and often used for shorter travel distances.

Structural Features

Sturdy Body: The frame utilizes a box-type welded steel structure, offering strong load-bearing capacity and minimal deformation.

Smooth Operation: Equipped with a reducer and motor drive system, it offers smooth starting and reliable braking.

Safety Devices: Equipped with an audible and visual alarm, limit switches, and an emergency stop button. Select models can also be equipped with an infrared sensor anti-collision system.

Control Mode: Supports joystick operation and wireless remote control, allowing users to choose according to their working conditions.

Customizable Design: Features such as a hydraulic lift, roller conveyor, and V-frame can be added to meet diverse cargo transportation needs.

Technical Parameters (reference values, customizable)

Load Capacity: 30 tons

Motor Power: 5-10 kW (depending on working conditions)

Operating Speed: 0-20 m/min (adjustable)

Track Gauge: 1435 mm (customizable based on the user's factory track)

Turning Radius: Customizable based on track layout

Control Method: Handle + Wireless Remote Control

Safety Devices: Emergency Stop, Audible and Visual Alarms, Limit Switches, Overload Protection

Application Scenarios

Mold Handling: Transfer and Installation of Large Molds in Production Workshops.

Steel Transport: Turnover of Heavy Workpieces such as Steel Coils and Billets in Metallurgical Plants.

Machinery: Transfer of Large Machine Tool Components and Semi-finished Products.

Production Lines: Serving as Material Handling Equipment Between Processes in the Production Process.

Product Advantages

✅ High Load Capacity: Designed for a 30-ton load capacity, meeting the needs of heavy cargo transportation.

✅ Smooth Operation: Utilizes a soft-start control system to ensure smooth, impact-free operation. ✅ Easy Operation: Dual remote control and handle modes provide flexible and safe operation.

✅ Easy Maintenance: Simple structure, easy maintenance, and long service life.

✅ Customizable: Flexible design of dimensions, power supply methods, and additional functions based on customer requirements.
